alert header Cleavage

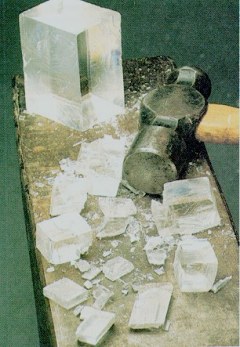

cleavage of calcite

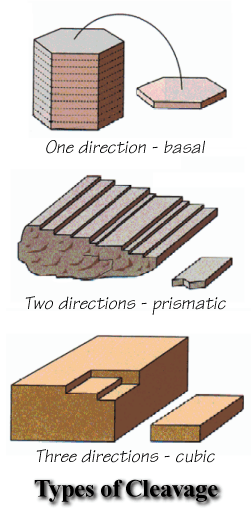

cleavage directions

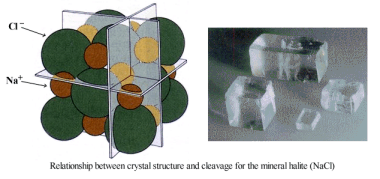

In some minerals, bonds between layers of atoms aligned in certain directions are weaker than bonds between different layers. In these cases, breakage occurs along smooth, flat surfaces parallel to those zones of weakness. In some minerals, a single direction of weakness exists, but in others, two, three, four, or as many as six may be present. Where more than one direction of cleavage is present, it is important to determine the angular relation between the resulting cleavage surfaces: are they perpendicular to each other (right angle), or do they meet at an acute or obtuse angle?

When a mineral cleaves, it often exhibits many cleavage surfaces, but most of these are generally parallel to one another. A hundred cleavage surfaces parallel to one another all define a single direction of cleavage, because all of them are parallel to the same zone of bond weakness. It is the number of directions of cleavage that we record, along with the angles between them. Minerals with two or more cleavage directions generally have a "stair-step" appearance when viewed with a magnifying glass. A mineral with two directions of cleavage may indeed be broken in some other direction-by irregular fracture. Thus, a single specimen may exhibit smooth cleavage planes in some directions, and irregular breakage surfaces in others. The more breakage surfaces we can see, the more clues we have to the mineral's internal structure.

It may be difficult for the beginner to distinguish between cleavage and crystal faces. After all, both are smooth, planar surfaces. Two hints will help make the distinction easy. (1) If a mineral's outer surface shows a tarnish or alteration, the crystal faces will be tarnished or dull; if cleavage planes are present, they are usually recently made and will be fresher and less altered. (2) If many surfaces are present parallel to one another, they are most likely cleavage surfaces.

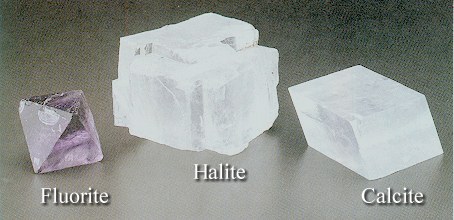

Examples of Cleavage



  alert header Fracture

  conchoidal fracture When bonds between atoms are approximately the same in all directions within a mineral, breakage occurs either on irregular surfaces (splintery or irregular fracture) or along smooth, curved surfaces (conchoidal fracture), similar to those formed when thick pieces of glass are broken.
